Model |
Screen Diameter |
Layer |
Power |
Material |
Screen mesh |
|
XCC600-1S |
560mm |
1 layer sieve,2 outlets |
0.55kw |
1,Contact part SUS 304, Non-contact part Carbon Steel 2,All parts in SUS 304 3,All parts in Carbon steel(sieves is SUS 304) Other material Can also be selected. |
100-600mesh |
|
XCC600-2S |
2 layers sieve,3 outlets |
0.55kw |
|||
|
XCC600-3S |
3 layers sieve,4 outlets |
0.55kw |
|||
|
XCC800-1S |
760mm |
1 layer sieve,2 outlets |
0.75kw |
||
|

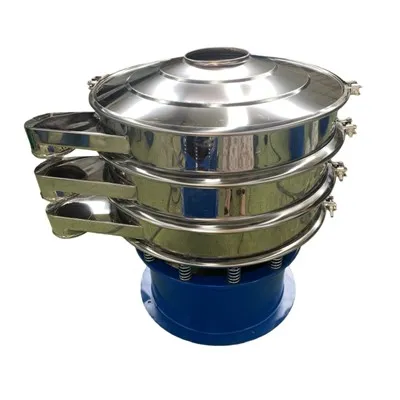

XCC800-2S |
2 layers sieve,3 outlets |
0.75kw |
|||
|
XCC800-3S |
3 layers sieve,4 outlets |
0.75kw |
|||
|
XCC1000-1S |
970mm |
1 layer sieve,2 outlets |
0.75kw |
||
|
XCC1000-2S |
2 layers sieve,3 outlets |
1.1kw |
|||
|
XCC1000-3S |
3 layers sieve,4 outlets |
1.5kw |
|||
|
XCC1200-1S |
1170mm |
1 layer sieve,2 outlets |
1.1kw |
||
|
XCC1200-2S |
2 layers sieve,3 outlets |
1.5kw |
|||
|
XCC1200-3S |
3 layers sieve,4 outlets |
1.75kw |
|||
|
XCC1500-1S |
1470mm |
1 layer sieve,2 outlets |
2.2kw |
||
|
XCC1500-2S |
2 layers sieve,3 outlets |
2.2kw |
|||
|
XCC1500-3S |
3 layers sieve,4 outlets |
2.2kw |
|||
|
XCC1800-1S |
1770mm |
1 layer sieve,2 outlets |
2.2kw |
||
|
XCC1800-2S |
2 layers sieve,3 outlets |
2.2kw |
|||
|
XCC1800-3S |
3 layers sieve,4 outlets |
2.2kw |
|||
|
XCC2000-1S |
1950mm |
1 layer sieve,2 outlets |
3.0kw |
||
|
XCC2000-2S |
2 layers sieve,3 outlets |
3.0kw |
|||
|
XCC2000-3S |
3 layers sieve,4 outlets |
3.7kw |
High Screening Efficiency: Due to the strong vibration of the screen box, greatly reduce the phenomenon that the materials block the screen holes so that the vibrating screen has high screening efficiency and productivity.
Long Service Life: The circular vibrating screen adopts a spring steel braided screen or punching screen plate with long service life. The intermediate transition bearing seat is added to the transmission part. The application of the intermediate transition bearing seat effectively protects the motor and prolongs the service life of the motor.
Advanced Structure And Reliable Operation: The circular vibrating screen adopts the barrel type vibration exciter and partial block adjustment device. Advanced rivet connection assembly frame structure improves the service life of the equipment. The spring vibration reduction device reduces the impact force on the foundation. The probability of failure is small.
Unique Design, Less Clogging: All the parts that directly contact the materials are made of stainless steel, which means extremely convenient cleaning. The screen design is delicate and durable, with high efficiency and long service life. The mesh holes are not clogged and the powder is not flying. The screen can be 500 mesh or 0.028mm.
Robust Components: The drive screen machine adopts a petal-shaped coupling and a flexible disk coupling with simple structure and easy manufacturing and maintenance. It is flexibly connected and runs smoothly, overcoming the defect that the universal coupling is easy to damage.
High Output And Rapid Production: Circular vibrating screen can ensure long-term and rapid production, which saves equipment operating costs and increases production volume.
Mining & Quarrying
Separation of minerals and elimination of oversized material.
01
Food & Beverages
Screening of grains, spices, sugar, flour, and other granular materials.
02
Chemical Processing
High-accuracy powder and chemical compound classification.
03
Pharmaceuticals
Reproducible formulation, active ingredient and excipient screening.
04
Recycling & Waste Management
Sorting of plastics, glass, and metals.
05
|
Model |
Screen Area |
Feed Particle Size |
Processing Capacity |
Double Amplitude |
Power |
Overall Dimension |
|
㎡ |
mm |
t/h |
mm |
kW |
mm |
|
|
XCKY-1020 |
2 |
＜150 |
15-200 |
6-9 |
2×2.0 |
2000×1660×1605 |
|
XCKY-1224 |
2.88 |
25-300 |
2×2.5 |
2540×1860×1860 |
||
|
XCKY-1030 |
3 |
35-400 |
2×2.5 |
3000×1800×2000 |
||
|
XCKY-1230 |
3.6 |
40-460 |
2×3.7 |
3000×1800×2130 |
||
|
XCKY-1530 |
4.5 |
45-400 |
2×3.7 |
3002×2560×2000 |
||
|
2XCKY-1020 |
2 |
15-200 |
2×2.0 |
2000×1660×1722 |
||
|
2XCKY-1224 |
2.88 |
25-300 |
2×2.5 |
2540×1860×2130 |
||
|
2XCKY-1030 |
3 |
35-400 |
2×2.5 |
3000×1800×2220 |
||
|
2XCKY-1230 |
3.6 |
40-460 |
2×3.7 |
3002×1860×2220 |
||
|
2XCKY-1530 |
4.5 |
45-400 |
2×5.5 |
3000×2560×2220 |
High Screening Efficiency
The square swing screen adopts a multi-layer structure, which is especially suitable for materials that require multi-layer classification. This structure can effectively improve screening efficiency.
High Screening Accuracy
The square swing screen uses vibration force to transfer to the screen surface for screening, which can quickly stratify the materials on the screen surface, thereby improving screening accuracy.different materials.
Simple Structure And Easy Maintenance
The structure of the square swing screen is relatively simple and easy to maintain. At the same time, the screen mesh of the square swing screen adopts a pull-tension type and can be easily replaced.
Wide Range Of Applications
The square swing screen is suitable for screening various powdery and granular materials, including grains, chemical raw materials, pharmaceutical raw materials, and food additives.
Screen Box: A square structure, available in fixed and movable versions. The former is a fixed screen box, and the latter is a movable screen box, allowing for adjustment of the screen box's angle.
Screen Frame: Made of metal, the screen frame comes in coarse and fine versions, selected according to different requirements.
Vibrating Motor: Also known as a vibrator, the vibrating motor is the power unit of the vibrating screen, generating significant vibration to achieve the screening operation.
Damping Springs: Installed between the vibrating motor and the screen box, these springs dampen vibrations, ensuring stable and reliable operation of the vibrating screen.
Fine and Coarse Screens: Used to screen materials of different particle sizes. Fine screens are generally used to filter fine materials, while coarse screens are used to filter larger materials.
Packaging
Generally,50pcs one carton,the exactly depends on the customers requests.
Shipping
1)We have experienced forwarder(DHL,FEDEX,UPS,TNT...) agency to shipment,so the most competitive price can be supplied if you're prefer.
2)Of course,you can select what you appointed courier to shipment.
As one of the most professional screening equipment suppliers in China, we're featured by quality products and low price. Please rest assured to buy cheap screening equipment in stock here and get pricelist from our factory. Customized orders are welcome.
