Model |
Power (kw) |
Delivery Volume (kg/h) |
|
ZKS-1 |
1.5 |
400 |
|
ZKS-2 |
2.2 |
600 |
|
ZKS-3 |
3 |
1200 |
|
ZKS-4 |
5.5 |
2500 |
|
ZKS-6 |
5.5 |
3200 |
|
ZKS-7 |
7.5 |
6000 (Conveying distance 10m) |
|
ZKS-10-6 |
7.5 |
6000 (Conveying distance 10m) |
|
ZKS-20-5 |
11 |
5000 (Conveying distance 20m) |
|
ZKS-450 |
5.5KW |
Conveying distance 50m |
|
ZKS-650 |
7.5KW |
Conveying distance 50m |
|
ZKS-800 |
11KW |
Conveying distance 100m |
Food Quality and Safety: A vacuum conveyor feeder helps maintain food quality and safety by reducing oxidation and contamination of materials.
Precise Control: This system allows precise control of the conveying speed and quantity of materials, ensuring the consistency of food products in each batch.
Efficient Production: The vacuum conveying system can improve production efficiency, reduce manual operations and material waste, and reduce production costs.
Cleaning and Hygiene: These systems are generally easy to clean, maintain, and meet food hygiene standards.
Flexibility: The vacuum conveyor feeder is suitable for different types of food, and the parameters and configuration can be adjusted as needed.
Agricultural Industry
Due to the vast production of seeds, grains and fertilizers agricultural industry is vigorously taking the services of a vacuum feeding machine to fulfill these tasks.
Food Industry
Among various other interprises food industry is highly influenced by this new technology of vacuum feeding. For feeding different items such as food additives, cereals, condiments, coffee beans, candies and liquids this machine has been used on great extent.
Pharmaceutical Industry
Thousands of pills, capsules and nutrition additives are produced everyday with need for proper feeding and packaging. To accomplish such highly responsible task an automatic vacuum feeding machine is brought into service which process unlimited medicines with precise temperature control while preserving their sensitivity.
Chemical Industry
Many chemical firms are using this machine for feeding acids and chemicals including hydrofluorosilicic acid, hydrochloric acid, copper sulfate solution, aluminum sulfate and emulsion polymers.
Metal Industry
For the feeding of various powders and granules like zinc powder, aluminum powder, silver powder, copper electrodes, metal industries are looking for the efficient functioning of vacuum feeder.
Pesticide Industry
Drugs which are used to kill insects especially to protect the growth of plants and crops are known as pesticides. Large number of industries in this field are utilizing vacuum feeding machine to securely convey the hazardous substances without leaving any effect on surrounding.
Pigment Industry
Use of a vacuum feeding machine can be traced in pigment industries. Different types of dyes, colorants, organic and inorganic pigments are effectively conveyed by this machine.

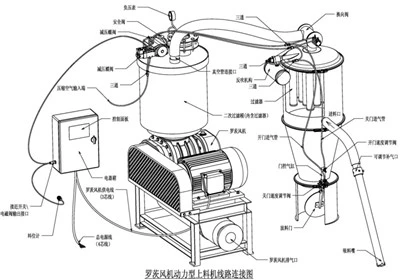

Vacuum Pump
Vacuum pump is the core power source of the equipment, responsible for generating negative pressure in the system to form the vacuum environment required for material suction. Common oil-free vacuum pumps can convey materials in the process of pollution-free, suitable for food, pharmaceutical and other high health standards industry. Its stable pumping capacity directly affects the suction speed and conveying efficiency.
Vacuum Hopper
Vacuum hopper is a temporary storage bin for materials, which adopts airtight design to prevent the outside air from entering, so that there is no dust and no leakage in the conveying process. It is usually equipped with level sensors to automatically control the feeding and discharging of materials, which can continuously and stably supply materials.
Filter
Filter is used to separate material from air and prevent powder from entering the vacuum pump and causing damage. Common filter element materials include polyester film, PE, stainless steel or titanium, which can be selected according to the material characteristics. The filtration accuracy directly affects the operating efficiency of the system and the cleaning cycle of the filter element.
Blowback Device
The blowback device cleans the filter element by compressed air pulse to prevent material clogging and maintain filtration efficiency. Every time when discharging, the system automatically triggers the blowback to prolong the service life of the filter element and reduce the frequency of manual maintenance.
Pneumatic Discharge Door
The discharge door is controlled by a cylinder and opens automatically after the vacuum is released so that the material can be discharged smoothly. Its sealing performance directly affects the system’s ability to maintain vacuum, ensuring stable and reliable conveying process.
Suction Nozzle And Conveying Hose
The suction nozzle is responsible for sucking in materials, usually made of stainless steel or wear-resistant material to adapt to the characteristics of different materials. The conveying hose connects all the components, which is flexible, pressure-resistant and corrosion-resistant to ensure the smooth flow of materials in a closed environment.
Packaging
Generally,50pcs one carton,the exactly depends on the customers requests.
Shipping
1)We have experienced forwarder(DHL,FEDEX,UPS,TNT...) agency to shipment,so the most competitive price can be supplied if you're prefer.
2)Of course,you can select what you appointed courier to shipment.
As one of the most professional vacuum feeder suppliers in China, we're featured by quality products and low price. Please rest assured to buy cheap vacuum feeder in stock here and get pricelist from our factory. Customized orders are welcome.
